MX524

Beskrivning

Specifikation

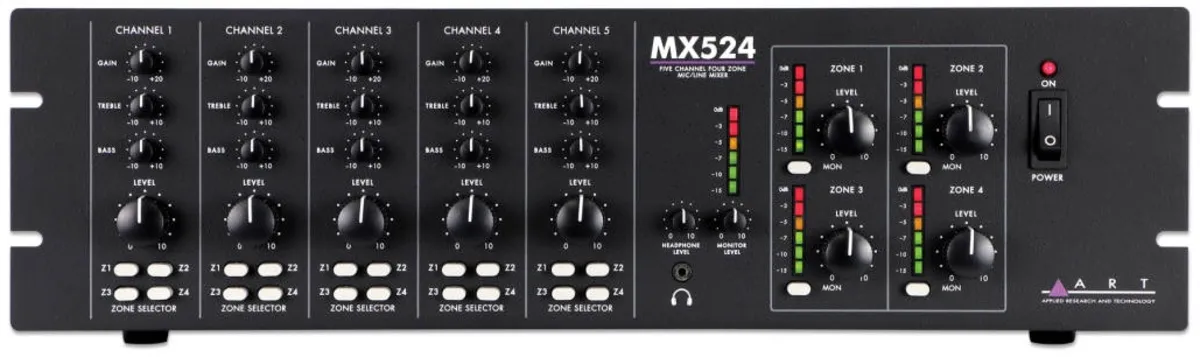

With five input channels and four output zones, the MX524 is our most fully-featured zone mixer.Four channels feature combo inputs for XLR or 1/4" connections, and switchable phantom power for condenser microphones. The fifth channel offers RCA line inputs.All channels have controls for input gain and output level as well as two-band EQ, and can be assigned to any or all of the zones. Each zone has an independent level control, and any combination of zones can be monitored by headphones or the line out terminals.When a signal is detected on the first input, the other channels will automatically lower in volume so that announcements can be clearly heard throughout a venue. Rear terminal connections also allow the connection of an auxiliary telephone signal for paging.Flexible and easy to use, the MX524 is an ideal solution for distributed audio in restaurants, conference rooms, houses of worship, and more.

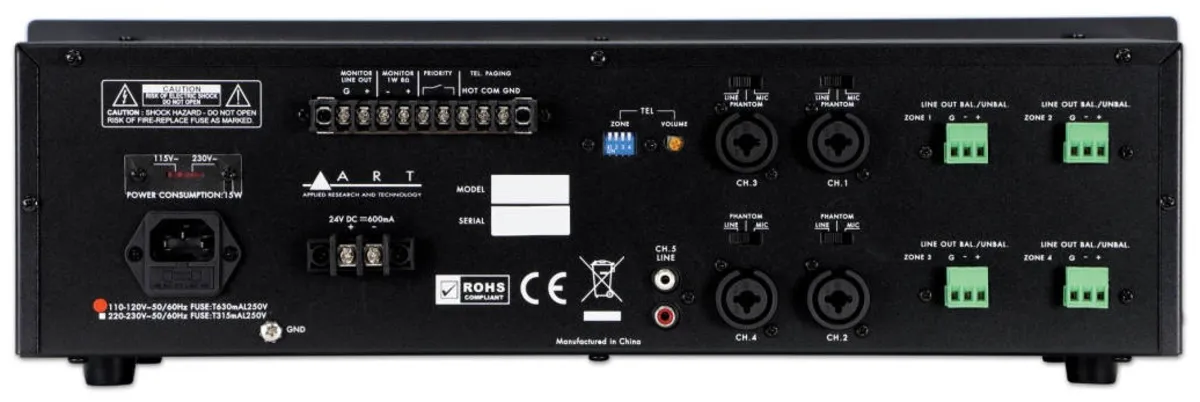

Inputs XLR / 1/4 Combo Jacks, RCAOutputs Euroblock, Screw terminalsMicrophone input: 1.4k 9 Input Impedance All other inputs 10k 2 or greaterZone outputs 120 9 Output Impedance Monitor Speaker output 8 9 Monitor Line output 120 g60 dB CH MIC. Input Main out (XLR, balanced) Maximum Gain 50 dB CH MIC. Input & REC. out (unbalanced) 60 dB CH MIC. Input Mono out (unbalanced)Frequency Response 20 Hz - 22 kHz (‡ 2 dBu)Total Harmonic <0.03% @1 kHz DistortionPhantom Power 48 VDCPower Requirements 110~120 VAC 50/60 Hz or 24 VDCDimensions (HWD) 5.1" x 19" × 7.5" (13.0 cm x 48.3 cm x 19.1 cm)Weight 6.63 lbs. / 3.0 kgNote 0 dBu = 0.775Vrms
