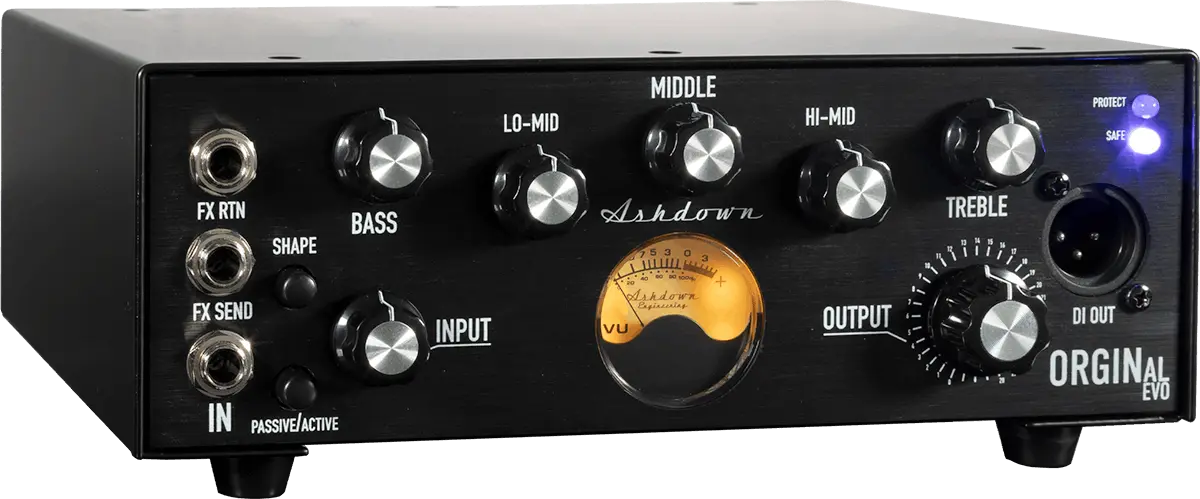

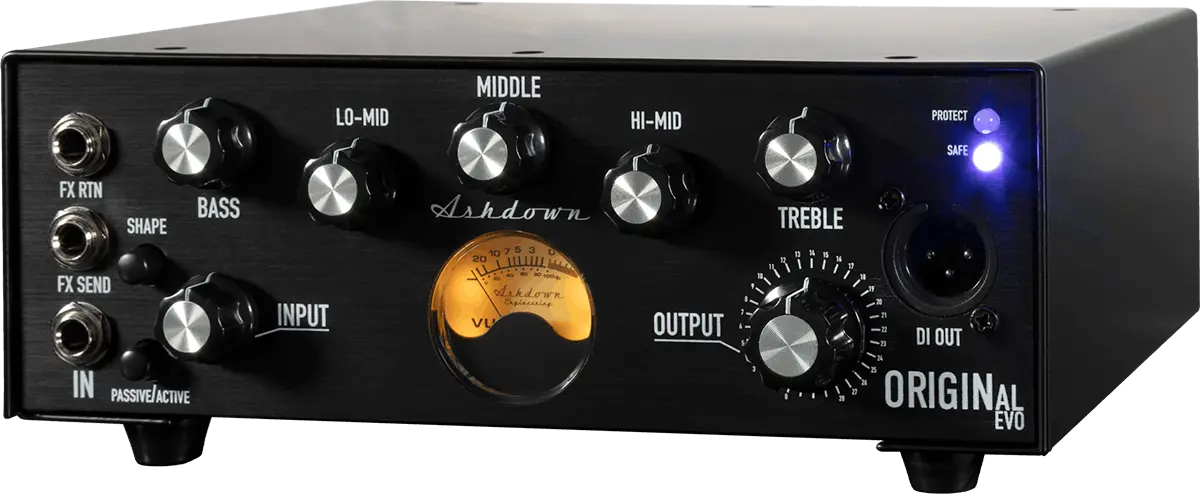

Elevate your bass playing with the Ashdown OriginAL EVO Mini Bass Head, a sleek and powerful amplifier that offers 300 Watts of pure, portable bass excellence. With its 5-band EQ, modern conveniences like an effects loop and XLR DI output, and a rugged design, this amp head is the ultimate companion for gigging bassists.
Power Output - 300 Watts
Power Requirements - 115-230 Volts Impedance Minimum 4 Ohms
Speaker Outputs - 2 x Jack outputs Signal to noise- Better than 80dB (EQ flat)
Frequency Response - -3dB @ 22Hz and 25KHz EQ - Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @
High Instrument Input - Impedance 3.9m Ohms, input range 150mV - 20 p6GOHz. Hi Mid +/-15dB @ 1.6kHz, Treble +/-15¢B @ 7kHz shelving
Effects Send - Impedance 22k Ohm, Level 0dBu nominal
Low Instrument Input - Impedance 1M Ohms, input range 150mV - 10V pEffects Return - Impedance 22k Ohms, Input Level 0dBu Nominal
p Distortion - Less than 0.5% THD
Line Input - Impedance 10k Ohms, input range 300mV - 40V p-p H x W x D (mm) - 89 x 220 x 209
DI Output - 600 Ohm balanced, Level -20dBu nominal Weight (kg) - 1.8
