The Algam Audio MR-1602 8-channel rack-mountable analog mixer is a versatile tool designed to meet the needs of audio professionals. With its eight stereo channels, this mixer offers exceptional flexibility for a wide range of applications, from studio recording to live sound, as a sub-mixer for stereo sources requiring multiple inputs. Its compact 1U rack-mount format makes it an indispensable tool on stage or in the studio.
A versatile mixer for many applications.
The MR-1602 is a versatile audio production tool, designed to meet the needs of sound professionals seeking simple and efficient equipment. Its 8 stereo channels are equipped with a pair of TRS jacks, switchable between professional +4 dB levels, used in sound systems and studios, and consumer -10 dB levels common in home studios and hi-fi, to adapt to all situations. A true audio Swiss Army knife, this mixer is perfect as a sub-mixing unit, to capture the signal from multiple stereo sources, such as instruments requiring multiple inputs, and output the whole as a mixed stereo signal.
A simple and effective interface.

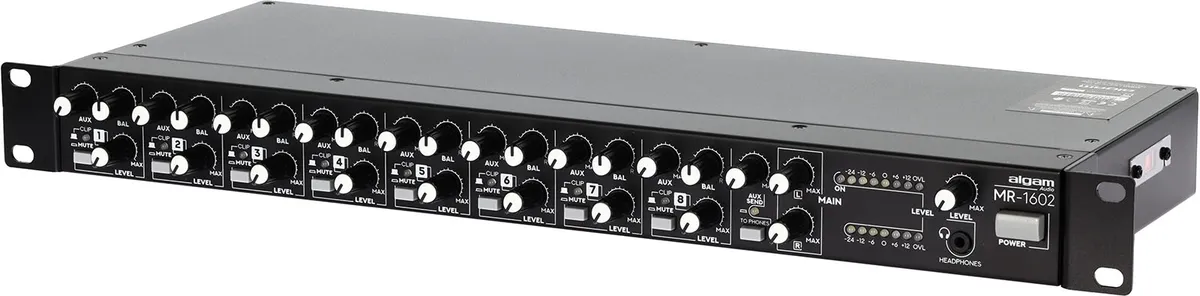

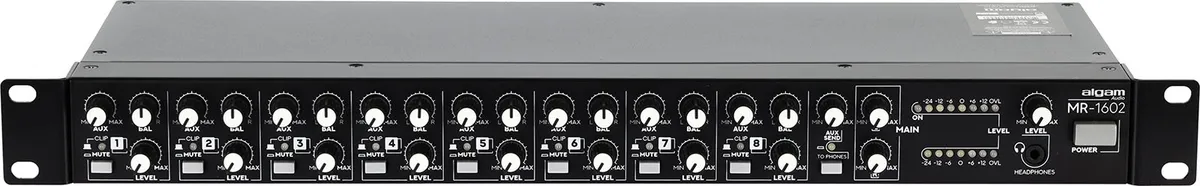

Each channel has an individual level control, a stereo balance adjustment, and an auxiliary send level control, allowing part of the signal to be routed to an auxiliary bus to feed monitoring systems or external effects. A mute switch per channel offers precise individual control over each channel. The main output is equipped with a pair of jacks offering a level adjustment per output, and an auxiliary send in jack format with a master level on the front panel, thus completing the signal routing possibilities.
The simplicity of the MR-1602 makes it an ideal tool for musicians, sound professionals, and anyone needing a clear and efficient mixing system, without getting lost in complex features. Its robustness and compact 1U format also make it an ideal companion for mobile applications.
- 8 Stereo Mixing Channels: with 8x 2 balanced 6.35mm jacks
- Channels Controls: level, balance, auxiliary send level, mute, +4 dBu / -10 dBu level selector
- Auxiliary Send with adjustable level per channel and at master, assignable to headphone output
- Headphone Output in 3.5mm mini-jack format on front panel, with level control and auxiliary send injectable into headphone output

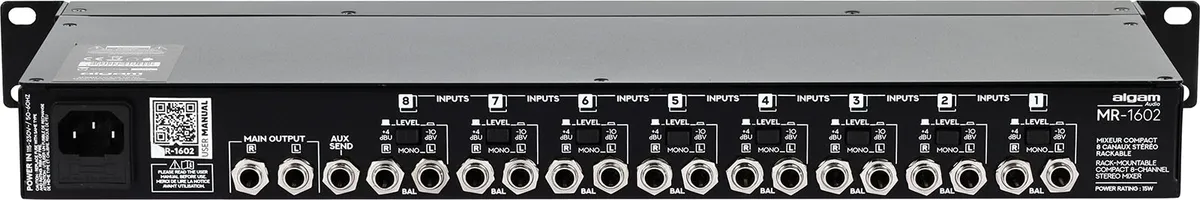

- Main Outputs in balanced 6.35mm jack format
- Individual Level Adjustment of main L/R outputs
- Level Indicator: 2 segments of 7 LEDs
