SHK SMARTBASE-MK2

Beskrivning

Specifikation

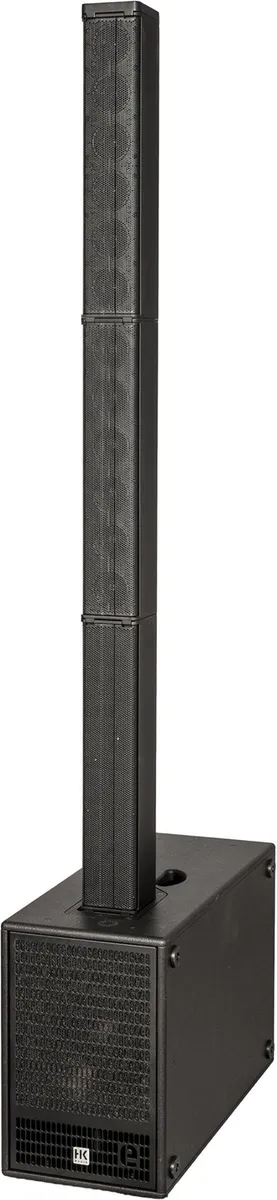

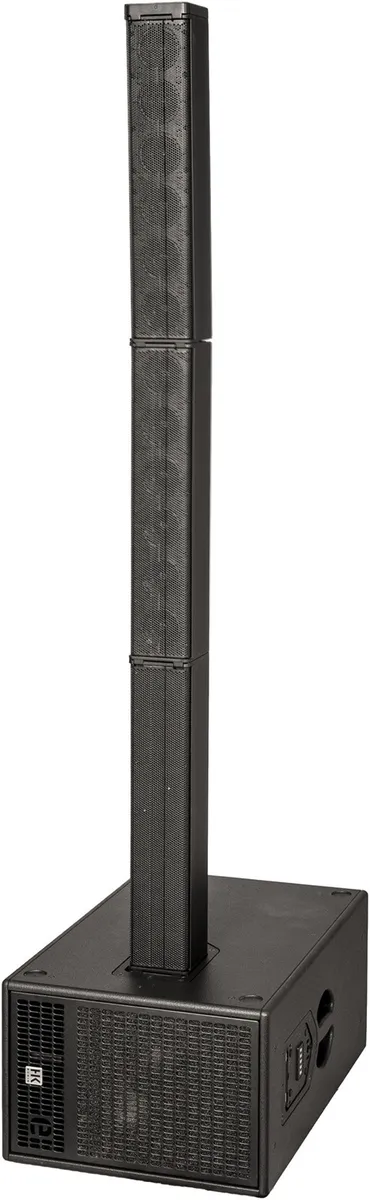

Complete ELEMENTS MK2 column system: two 635 mid/high columns, a spacer and the 110 Sub A active 10" subwoofer. Compact and quick to set up.

System contents

• 2 x ELEMENTS MK2 635 mid/high column
• 1 x ELEMENTS MK2 Spacer
• 1 x ELEMENTS MK2 110 Sub A active subwoofer

ELEMENTS MK2 110 Sub A

• Type: active subwoofer with DSP
• Woofer: 1 x 10 inch
• Amplifier power: 900 W RMS, 1800 W peak
• Maximum SPL: 123 dB
• Frequency response at -6 dB: 52 Hz to crossover
• Frequency response at -10 dB: 49 Hz to crossover
• Network: RJ45 in and out
• Dimensions: 328 x 673 x 486 mm
• Weight: 28.5 kg

Concept and configurations

• Modular column system consisting of ELEMENTS MK2 635 mid/high columns, an ELEMENTS MK2 SPACER spacer and active 110 Sub A or 115 Sub A subwoofers
• Dispersion principle: modular line array
• Scalability: up to 3 mid/high modules and 2 subwoofers depending on the configuration
• Automatic detection of the number of mid/high modules with automatic DSP midrange compensation
• System compatibility: HK Audio LINEAR 5 MK2 and LINEAR 9
• Can be extended with the LINEAR 5 MK2 115 Sub A subwoofer, particularly for cardioid configurations
• SMART BASE configuration: 2 x ELEMENTS MK2 635, 1 x ELEMENTS MK2 SPACER, 1 x ELEMENTS MK2 110 Sub A
• BIG BASE configuration: 2 x ELEMENTS MK2 635, 1 x ELEMENTS MK2 SPACER, 1 x ELEMENTS MK2 115 Sub A

ELEMENTS MK2 635 mid/high column

• Type: passive full-range column loudspeaker
• Loading principle: sealed enclosure
• Mid/high loudspeakers: 6 x 3.25 inches
• Waveguide: 6 x phase plugs
• Peak power handling: 250 W
• Nominal impedance: 12 Ohm
• Maximum peak SPL: 132 dB
• Crossover frequency: 175 Hz
• Frequency response at -6 dB: 170 Hz to 18 kHz
• Frequency response at -10 dB: 145 Hz to 20 kHz
• Dispersion at -9 dB: 90 degrees horizontal x 5 degrees vertical
• Input: 1 x E-Connect MK2
• Parallel output: 1 x E-Connect MK2
• Enclosure: aluminium with black powder-coated finish
• Grille: steel with anti-corrosion treatment
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 7.3 kg

ELEMENTS MK2 SPACER spacer

• Input connection: 1 x E-Connect
• Parallel output: 1 x E-Connect
• Enclosure: aluminium with black powder-coated finish
• Dimensions: 11.2 x 56 x 15.1 cm
• Weight: 3.85 kg
