SDA AVIO-A-2IN2OUT-EB

Beskrivning

Specifikation

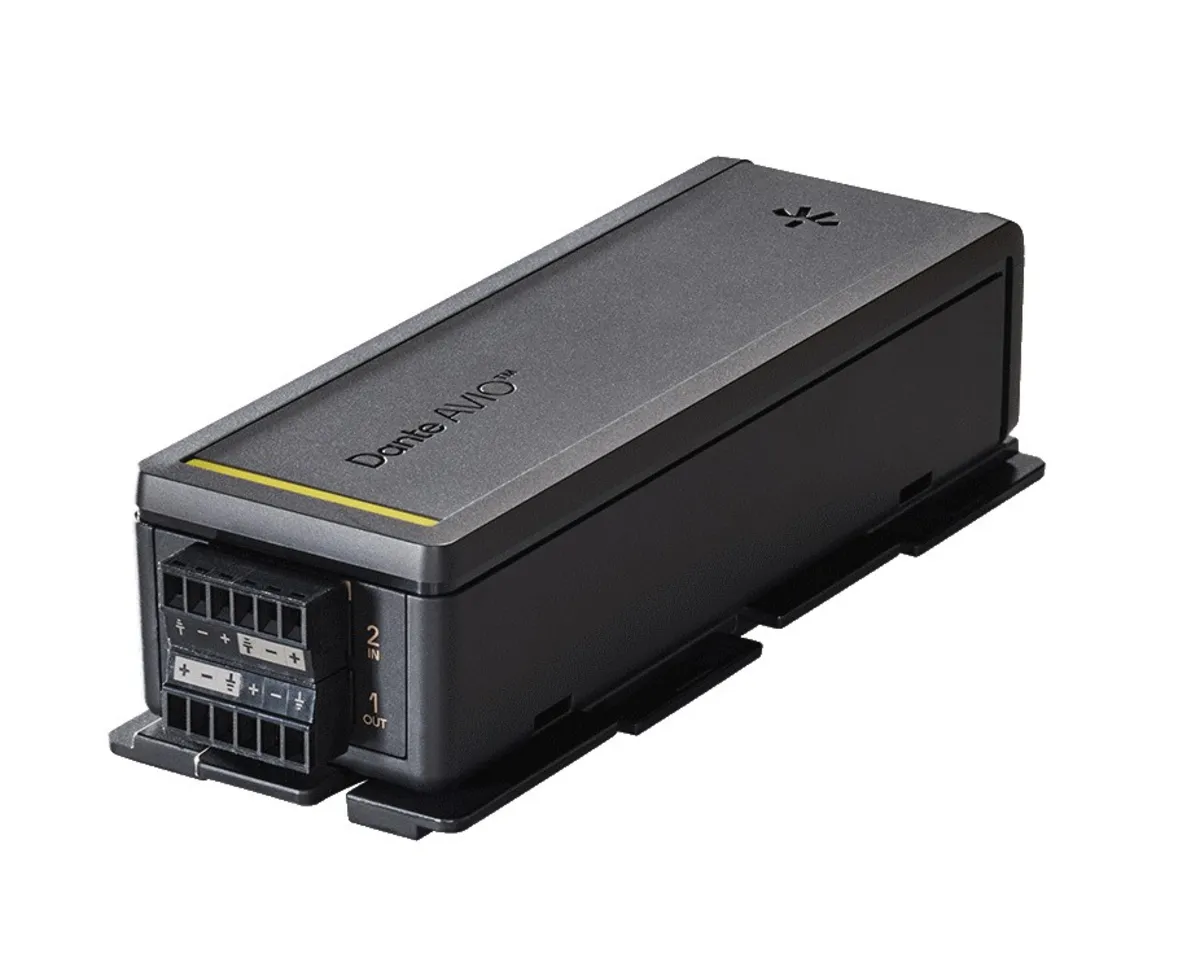

Bidirectional Dante AVIO Install adapter that puts two analog lines on the network and brings two back out. PoE powered, Euroblock wiring and daisy-chain ready.

• 2 analog inputs and 2 analog outputs, line level
• Sample rates 44.1, 48, 88.2 and 96 kHz, 16, 24 or 32-bit
• Selectable max level: +4 dBu, 0 dBu, 0 dBV or -10 dBV
• Frequency response 20 Hz – 20 kHz (±0.2 dB)
• Dynamic range 108 dB in, 105 dB out
• 2 x 6-pin Euroblock, 3.5 mm pitch
• 2 x 100 Mbps Ethernet with built-in switch, daisy-chain up to 4 units per network drop
• PoE Class 3 (802.3af), 2.5 W standalone
• Bracket included, compatible with Dante AVIO ClickGrid
• Setup and routing in Dante Controller
