SDA AVIO-A-4IN-EB

Beskrivning

Specifikation

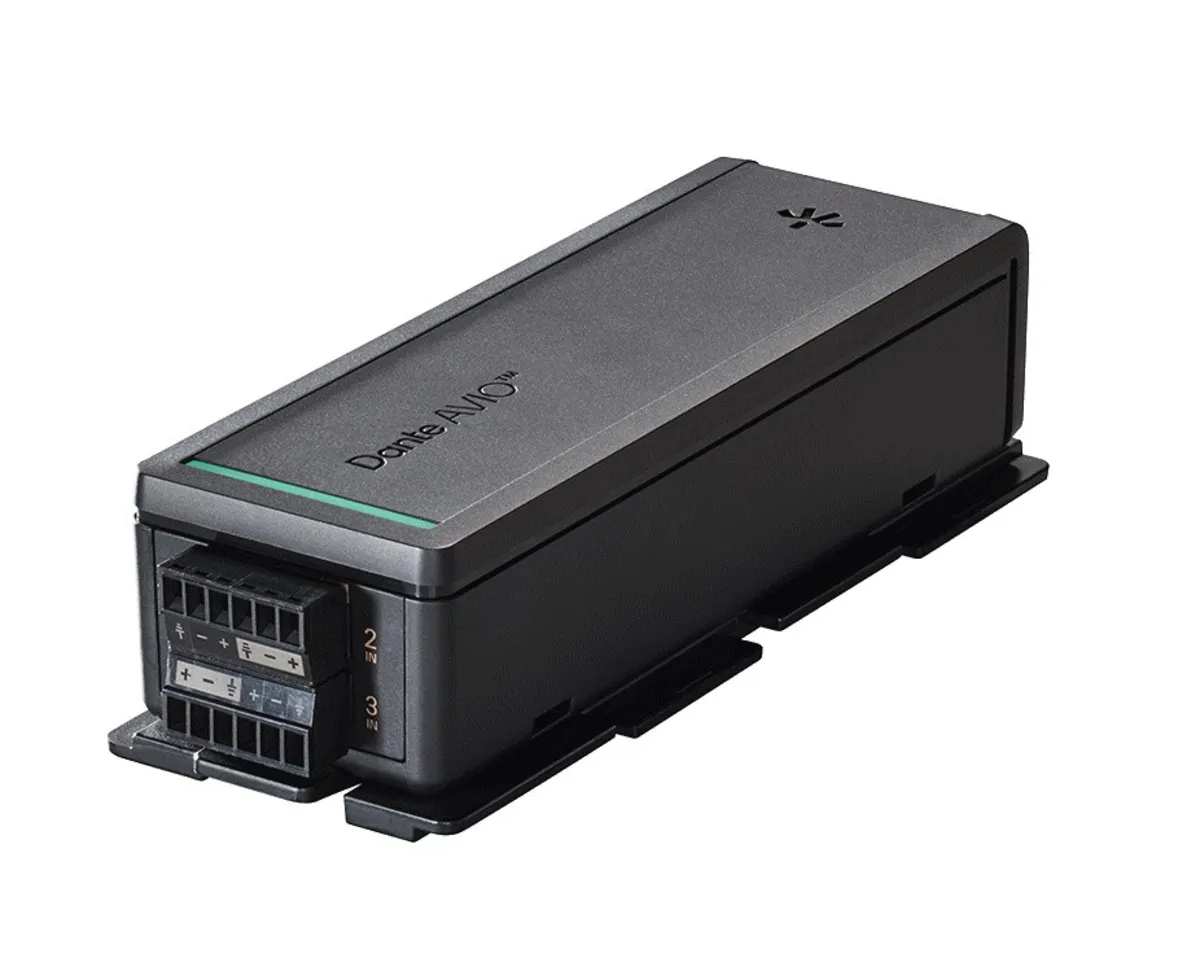

Four-channel Dante AVIO Install input adapter that turns line-level sources such as mixers, DSPs and preamps into Dante channels. PoE powered with Euroblock wiring.

• 4 analog line inputs to Dante (2 channels at 88.2/96 kHz)
• Sample rates 44.1, 48, 88.2 and 96 kHz, 16, 24 or 32-bit
• Selectable max input level: +4 dBu, 0 dBu, 0 dBV or -10 dBV
• Input impedance 20 kΩ balanced, 10 kΩ unbalanced
• Frequency response 20 Hz – 20 kHz (±0.2 dB)
• Dynamic range 108 dB, THD+N 0.0008 %
• 2 x 6-pin Euroblock, 3.5 mm pitch
• 2 x 100 Mbps Ethernet with built-in switch, daisy-chain up to 4 units per network drop
• PoE Class 3 (802.3af), 2.5 W standalone
• Bracket included, compatible with Dante AVIO ClickGrid
• Setup and routing in Dante Controller
• Size 150 x 53 x 38 mm, weight approx. 0.18 kg
