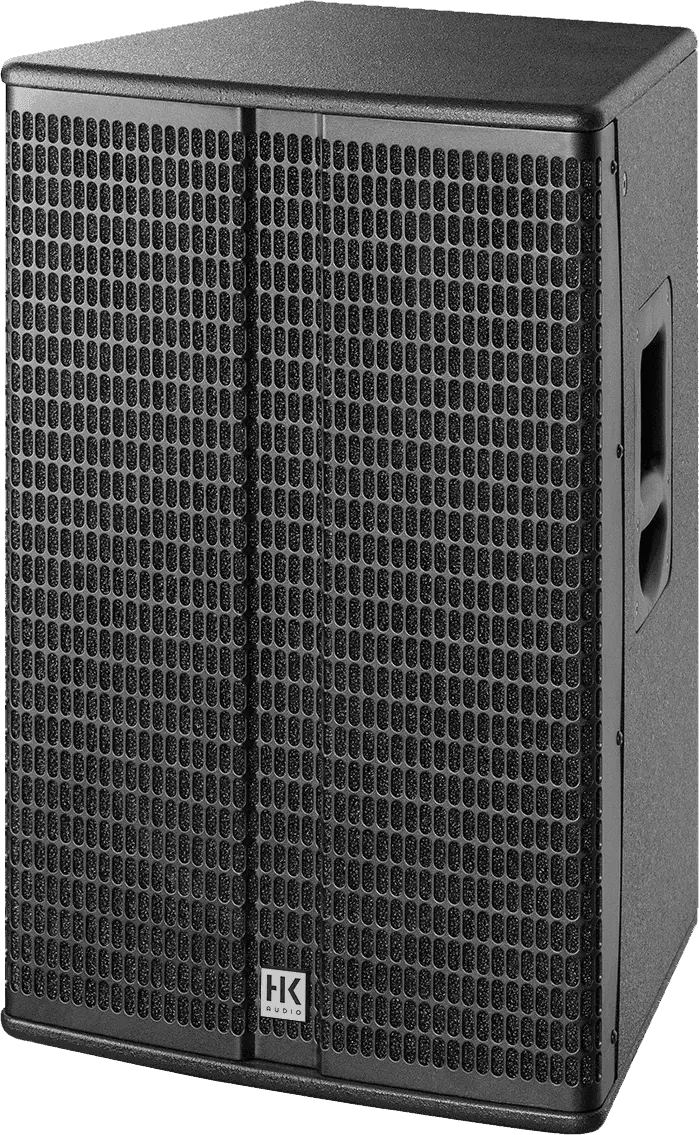

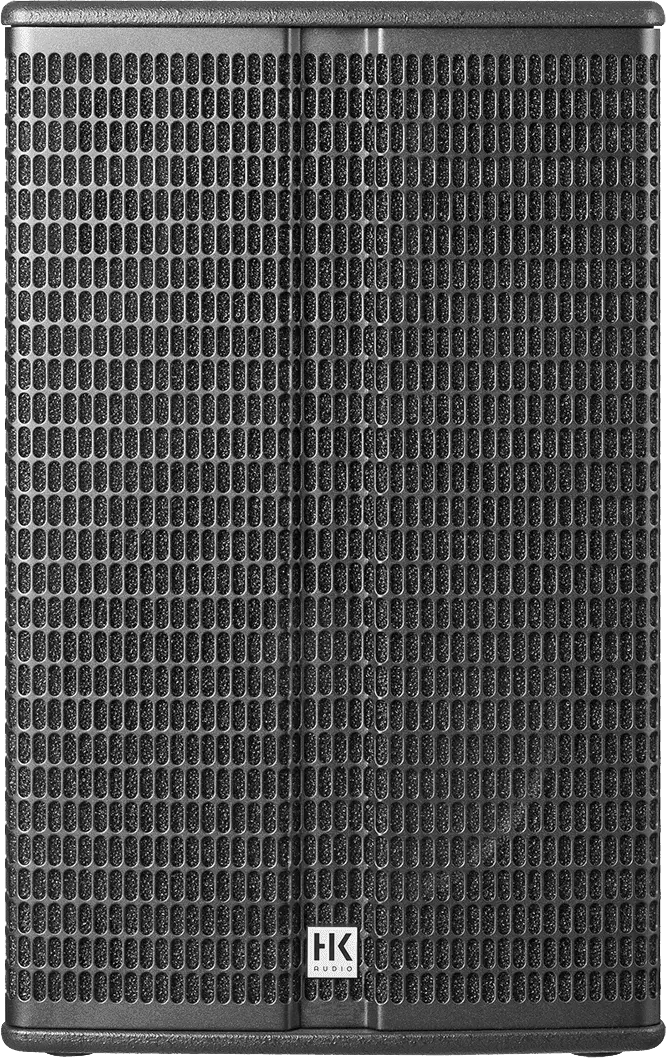

This active 15”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the LINEAR SUB series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.
• Bandwidth +/• 3 dB : 58 Hz • 16 kHz
• Bandwidth • 10 dB : 49 Hz • 18 kHz
• SPL max peak : 135 dB (10% THD)
• Total amplifier power : 1200W Class D
• Connectors : 2 Line In (XLR-Jack), 1 Line In stereo (RCA) / 1 Line Through (XLR) / 1 Mix Out (XLR)
• Components : HP 38 cm / 1"" treble motor
• Dispersion (H x V) : 90° x 55°, pivotable

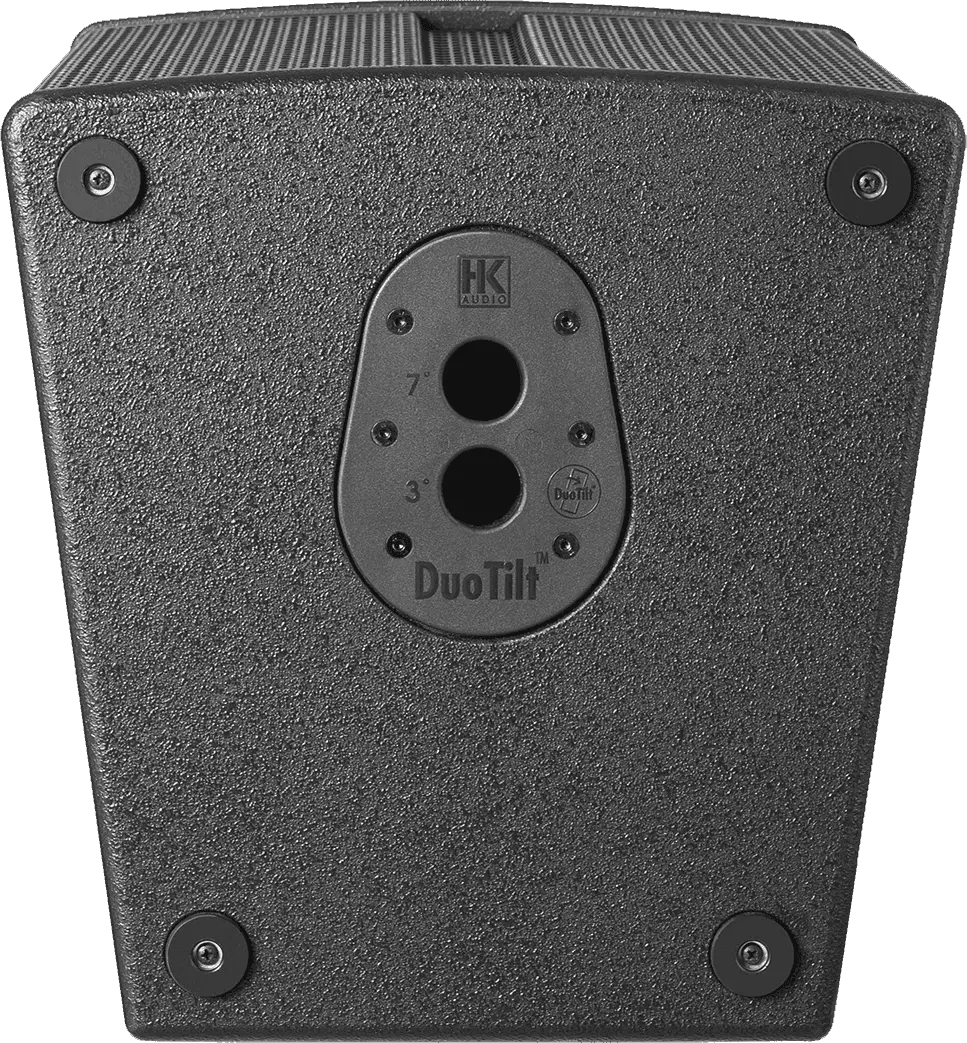

• Sloped base for speaker stand: DuoTilt 36 mm, 3 or 7 degrees
• Hook : 4 M8 inserts for optional rings (reference EB8)
• Dimensions: W44 x H69 x D44.5 cm / Weight: 27.9 Kg / Colour: black
• Hybrid structure: MDF 16 mm
