CX311

Beskrivning

Specifikation

The CX311 two-way stereo crossover network has an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region.

CX311 Highlights:

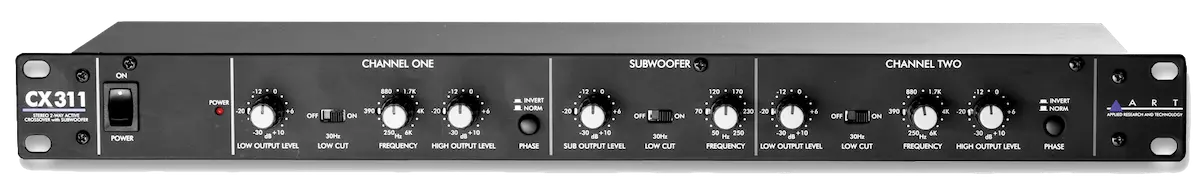

Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz).

All three outputs have a 30 cycle low cut switch to eliminate low-end rumble.

Subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range.

• 2-way stereo crossover with subwoofer output
• 24 dB/octave Linkwitz-Riley filters
• Crossover 250 Hz – 6 kHz
• 30 Hz low cut on all outputs
