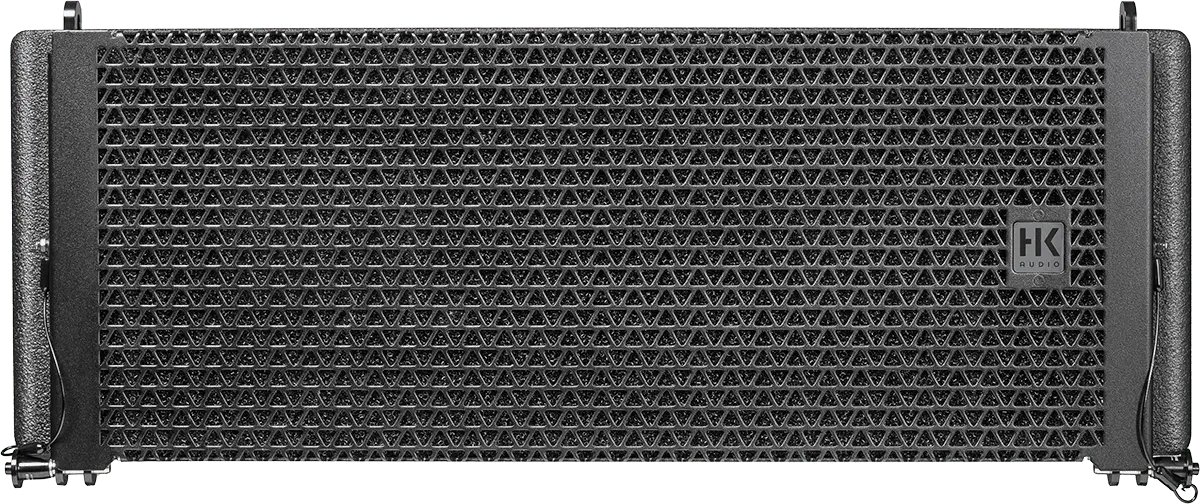

The wide horizontal dispersion of 100° and the low overall height make the compact C6 array an ideal solution for very wide audience areas. Thanks to its low weight, the C6 can meet high acoustic requirements, even with limited load capacity. The wide frequency range makes it perfect for use in pure speech applications without additional subwoofers. Two 6.5" transducers loaded to an acoustic coupler increase the maximum sound pressure level. When paired with subwoofers, the C 6 mid/high unit really shows its strengths for rock and pop gigs. It requires no adapters and leaves no gaps when combined with C10 and C 8 units, making the C 6 ideal as the bottom section of a mixed line array. All in all, considerably fewer components are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families. The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements. An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.
Power-handling nominal 400 W (RMS)
Power-handling, program 800 W
Power-handling, peak 1600 W
Nominal impedance 16 Ohm
Max SPL @ 10 % THD 142 dB (3x C 6) (EN 60268-21:2019)
Sensitivity 1W/1m 108 dB (100 Hz - 10 kHz), full space
Frequency response + / - 3 dB 75 Hz - 18 kHz
Frequency response -10 dB 70 Hz - 19 kHz
Low/Mid Speaker 2x6,5' SICA Neodym with 2" voice coil
HF Driver 1,4" B&C with 3" voice coil
Directivity 100° horizontal
Crossover frequency 850 Hz, 12 dB/oct.

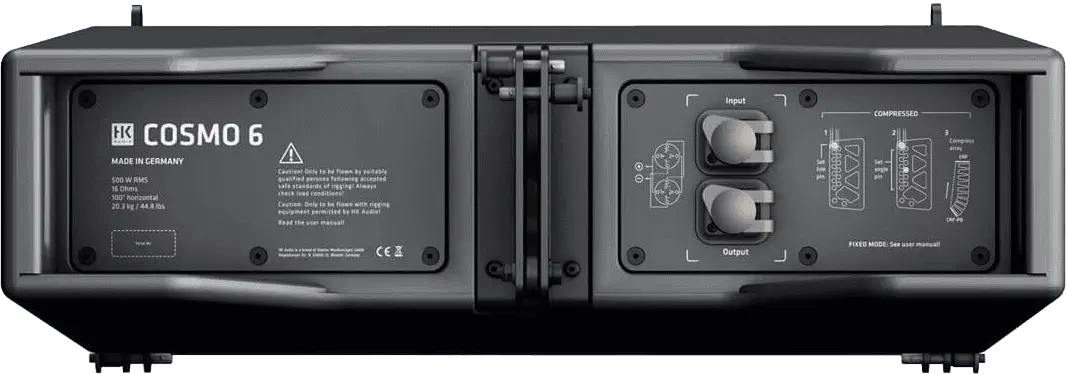

Connections 2x Speakon NL4 (with sealing cap)
Rigging points 3-point rigging hardwarewith black KTL coating
Handles 4X integrated handle
Enclosure birch multiplex
steel front grill with anticorrosive coating, acoustic Grille foam
Finish PU coating
Dimensions (WxH×D) 60 x 22 x 45 cm 23-5/8 x 8-21/32 x 17-23/32"
Weight 20.2 kg 44.5 lbs
