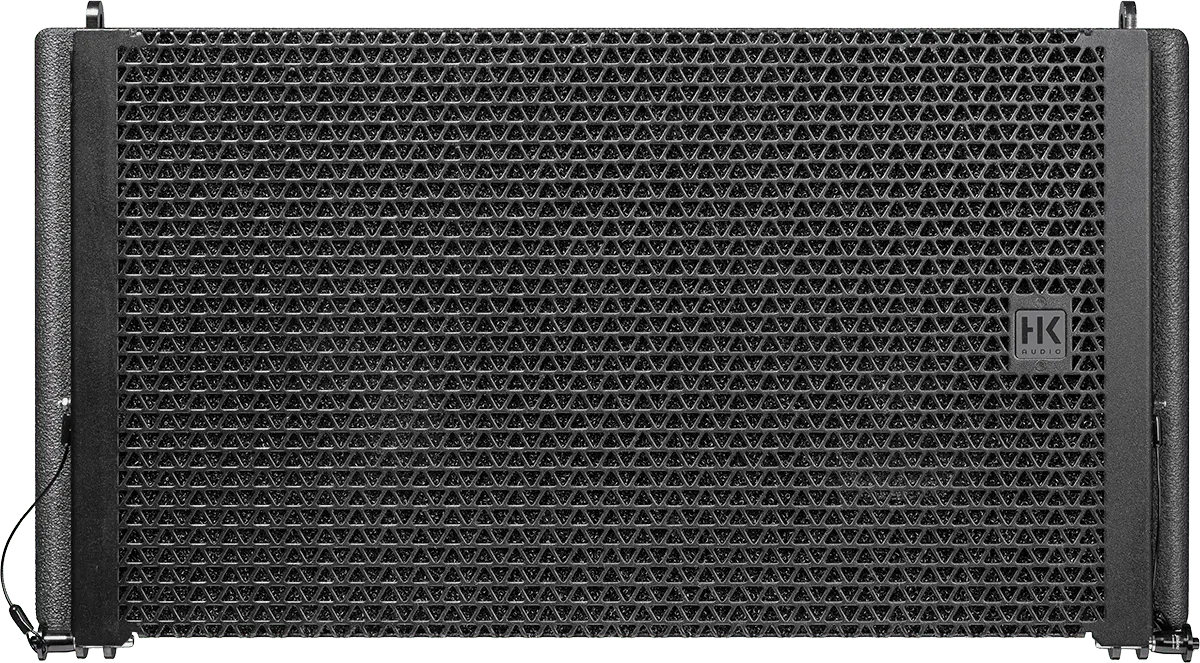

The COSMO C 10 has two 10" neodymium speakers with a horizontal dispersion of 60°. It is therefore ideally suited as a full-range line array for large events with required ranges of 80 meters and more. The narrow horizontal dispersion allows a large throw range with targeted sound distribution. The asymmetrical sound distribution of the C 10 mid/high unit can be modularly adjusted by pairing it with C and C 8 units. The COSMO C 10 is even more flexible thanks to the option to install the supplied 80° brackets. This allows better control of the horizontal dispersion of a pure C 10 line array without compromising on the useful sound pressure level. It requires no adapters and leaves no gaps when combined with C 6 and C 8 units, making the C 10 ideal as the top section of a mixed line array. All in all, considerably fewer component:
are needed than before to cover the full spectrum of what users need and expect from an FoH system. This extends the operating periods of each component compared to other system families. The uniform dimensions of the COSMO family simplify both storage and disposition, which has a positive impact on the warehousing in total. The line array is easy to handle, resulting in enormous time savings, as well as reduced training requirements An existing system can be expanded precisely as needed, all of which means an effective investment protection is ensured. The expansion in small steps creates a much lower initial investment requirement.
Power-handling nominal 800 W (RMS)
Power-handling, program 1600 W
Power-handling, peak 3200 W
Nominal impedance 8 ohms
Max SPL @ 10 % THD 147 dB (3 units C 10)
Sensitivity 1W/1m 108 dB (100 Hz - 10 kHz), full space
Frequency response + / - 3 dB 58 Hz - 18 kHz
Frequency response -10 dB 53 Hz - 19 kHz
Low/Mid Speaker 2x10" B&C with 2,5" voice coil
HF Driver 2x1,4" B&C with 3" voice coil
Directivity 60° horizontal (80° optional)
Crossover frequency 850 Hz, 12 dB/oct.
Connections 2x Speakon NL4 (with sealing cap)
Rigging points 3-point rigging hardwarewith black KTL coating
Handles 4x integrated handle
Enclosure birch multiplex
steel front grill with anticorrosive coating, acoustic Grille foam
Finish PU coating
Dimensions (WxHxD) 60 x 32 x 47.5 cm 23-5/8 x 12-43/64 x 18 45/64"
Weight 32.1 kg / 70.8 lbs,
